Doran 360HD Tire Monitoring System + Remote Antenna Kit

$618.00

  • Brand: Doran
  • Availability: In Stock
  • SKU: DORAN-360HD6
Number of Wheels

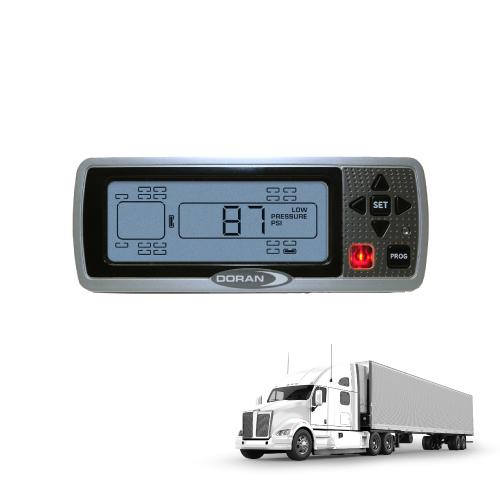

Doran 360HD™ Tire Monitoring System

Designed for Tire Monitoring System for Commercial Trucks, Truck only and Married Truck/Trailer Combinations

The Doran 360HD™ tire monitoring system includes a display that is mounted in the cab of the truck that continuously monitors tire pressure and temperature data received through radio frequency signals transmitted from wireless sensors that are mounted in place of the valve stem caps on each tire.

What is included?

Components & Specifications

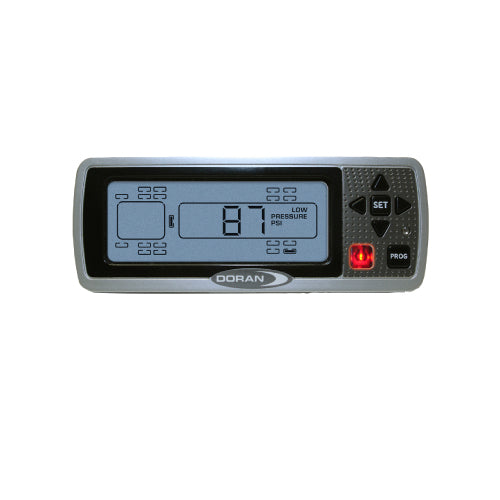

Monitor / Display

Digital LCD screen with backlit display for optimal visibility

Patented Green Means Good™ indicator light provides at-a-glance confidence that the system is working properly

Both audible and visual alarms are activated to notify the driver and the display identifies the specific tire location with updated data

Specifications

Power Requirement: 12/24 VDC
Current Draw at 12VDC:

  • Normal Mode: < 77mA
  • Alarm and, Backlight: < 115mA
  • Sleep Mode: < 70mA


Tire Positions: 1 to 36 wheels
Low Pressure Alerts: 12.5% and 25% below the baseline tire pressure
FastLeakTM Alert: 4.5psi drop within 16 seconds
High Pressure Alert (optional): 25% above the programmed
baseline pressure
High Temperature Alert: 175°F
Dimensions: 5.65” W x 2.16” L x 1.14” D
Weight: 5.40 oz

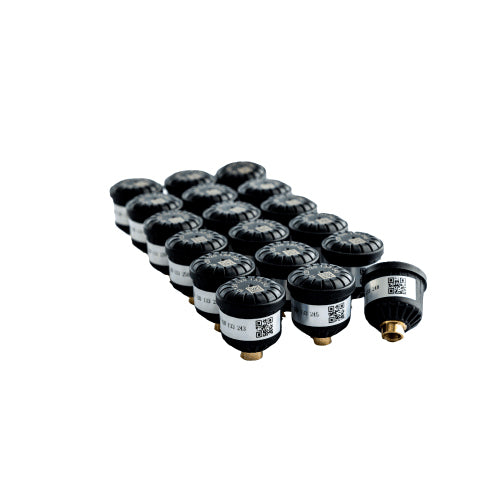

Wireless Sensors

A lithium-ion battery, with a design life of five years, is built-in to each sensor

Batteries are not replaceable to protect
the integrity of the seal and minimize the
potential damage to the electronics

The high impact, thermal resistant, nylon
housing is spin-welded to prevent air
leaks and eliminate the potential for
outside contaminants

A potting material is inserted into each
sensor to stabilize and protect the
internal components

Specifications

Pressure Range: 10 to 188 PSI
Accuracy: +/- 2 PSI over the pressure range
Operating Frequency: 434.10MHz
Operating Temperature Range: -40°F to +257°F
Storage Temperature Range: - 40°F to +257°F
Battery: internal, non-rechargeable & non-replaceable
Low Voltage Shutdown: 2.2V
Dimensions: 1.16” W x 1.30” H
Weight: 0.83 oz

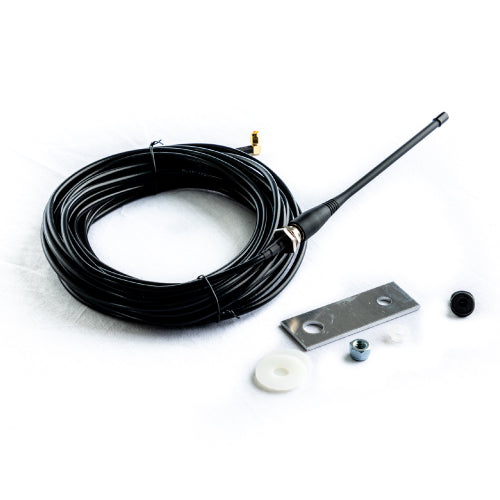

Remote Antenna Kit

Attaches to the monitor and mounted
to cross member of tractor to ensure
signal reception reliability

Specifications

Cable: coaxial
Length: 35’

Programming and Installation

Easy Steps

Mount and hardwire the 12-volt display/monitor in the cab (A remote antenna kit is recommended to move the reception point out of the cab to improve the reliability of the RF signal reception)

Use the three-digit laser etched serial number on each sensor to program each wheel position with baseline tire pressure

Install the wireless sensors by simply screwing them on to
the valve stem



Doran 360HD™

Information Sheet

Doran 360HD™

User Manual

Doran 360HD™

Programming Guide

Shop Optional Components

Configure your system or add replacement parts

Sold out

Quantity

Stainless steel flow-through adapter installs over the current valve stem eliminate the need to remove the sensor to put air in the tire.

Sold out

Quantity

Provides easier access to the valve stem for putting air in tires and eliminates the need to remove the sensor; bracket attaches to the
lug nut to provide stability.

Sold out

Quantity

Sold out

Provides easier access to the valve stem for putting air in tires and eliminates the need to remove the sensor; bracket attaches to the
lug nut to provide stability.

Quantity

Sold out

Quantity

Are you managing a large fleet?

Doran offers solutions and services for fleet managers and maintenance managers. Contact a sales representative to get bulk pricing
