Doran 360RV Tire Monitoring System

$432.63

  • Brand: Doran
  • Availability: In Stock
  • SKU: 360RV4
Number of Wheels

Doran 360RV™ Tire Monitoring System

Designed for RV, Trailer and Tow Vehicle Operations

The 360RV™ tire monitoring systems continuously analyze and communicate the tire pressures on your motor home, fifth wheel or tow car ensuring the safe and comfortable ride that you expect.

What is included?

Components & Specifications

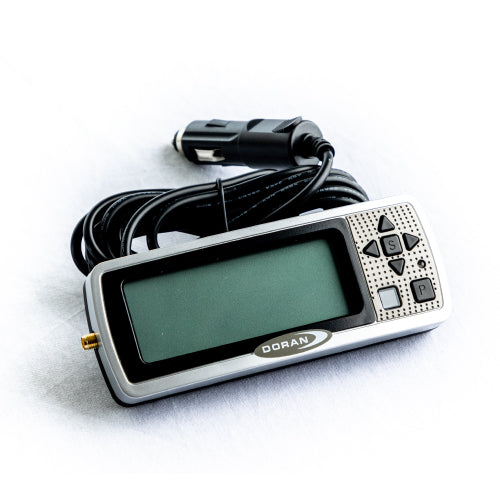

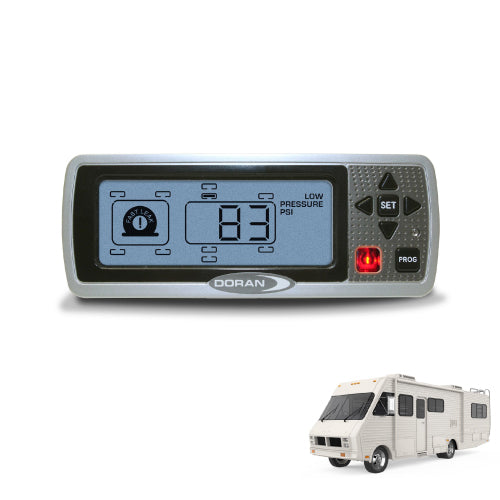

Monitor / Display

Digital LCD screen with backlit display for optimal visibility

Patented Green Means Good™ indicator light provides at-a-glance confidence that the system is working properly

Both audible and visual alarms are activated to notify the driver and the display identifies the specific tire location with updated data

Specifications

Power Requirement: 12/24 VDC
Current Draw at 12VDC: Normal Mode: < 77mA, Alarm and, Backlight: < 115mA
Sleep Mode: < 70mA
Tire Positions: 1 to 36 wheels
Low Pressure Alerts: 12.5% and 25% below the baseline tire pressure
FastLeakTM Alert: 4.5psi drop within 16 seconds
High Pressure Alert (optional): 25% above the programmed
baseline pressure
High Temperature Alert: 175°F
Dimensions: 5.65” W x 2.16” L x 1.14” D
Weight: 5.40 oz


Wireless Sensors

A lithium-ion battery, with a design life of five years, is built-in to each sensor

Batteries are not replaceable to protect the integrity of the seal and minimize the potential damage to the electronics

The high impact, thermal resistant, nylon housing is spin-welded to prevent air leaks and eliminate the potential for outside contaminants

A potting material is inserted into each sensor to stabilize and protect the internal components

Specifications

Pressure Range: 10 to 188 PSI
Accuracy: +/- 2 PSI over the pressure range
Operating Frequency: 434.10MHz
Operating Temperature Range: -40°F to +257°F
Storage Temperature Range: - 40°F to +257°F
Battery: internal, non-rechargeable & non-replaceable
Low Voltage Shutdown: 2.2V
Dimensions: 1.16” W x 1.30” H
Weight: 0.83 oz

Features

Available in 4, 6, 8, 10, 12 & 14 Wheels

2 Years Warranty

Your investment in a Doran 360RV™ is protected by an industry leading two-year limited warranty

Multiple Configurations

Our system come in multiple options from 4 to 14 wheels and can manage up to 35 wheels.

Multiple Alert Settings

Standard low pressure warnings are activated at 12.5% and 25% below the programmed baseline tire pressure

A FastLeak™ alarm is triggered with a 4.5psi drop in less than 16 seconds which lets the driver know that there has a been sudden drop in pressure that needs to be addressed

A high temperature alarm goes off when the temperature of a sensor reaches 175˚ F which indicates a potential problem with the tire

Programming and Installation

Easy Steps

Mount and hardware the 12-volt display/monitor in the cab (A remote antenna kit is recommended to move the reception point out of the cab to improve the reliability of the RF signal reception)

Use the three-digit laser etched serial number on each sensor to program each wheel position with baseline tire pressure.

Install the wireless sensors by simply screwing them on to the valve stem.

Doran 360RV™

Information
Sheet

Doran 360RV™

User
Manual

Shop Optional Components

Configure your system or add replacement parts

Sold out

Quantity

Attaches to the monitor and mounted
to cross member of tractor to ensure
signal reception reliability.

Sold out

Quantity

Modulation Mode: FSK
Operating Frequency: 434.10MHz
Input Voltage Range: 12VDc
Dimensions: W: 4.875” x H: 7.0”
Weight: 16 oz

Sold out

Quantity

Sold out

Quantity

$432.63
